Core Parameters

• Technical specifications

• Caliber range: 1/2"~8";

• Pressure range: CLASS150~300;

• Model: Q41F

• Materials: carbon steel, austenitic stainless steel CF8, CF8M, CF3, CF3M, etc;

• Temperature range: normal temperature type -29~120℃, high temperature type -29~180℃;

• Driving mode: manual, pneumatic, electric, etc.

• Implementation Standard

• Design and manufacturing standards: API 608, API 6D

• Structural length standard: ASME B16.10

• Flange standard: ASME B16.5

• Inspection and testing standard: API 59

Technical Features

1. Fireproof and anti-static function;

2. Structure to prevent valve stem from flying out;

3. The valve seat is made of imported Japanese Daikin PTFE, ensuring stable and reliable sealing;

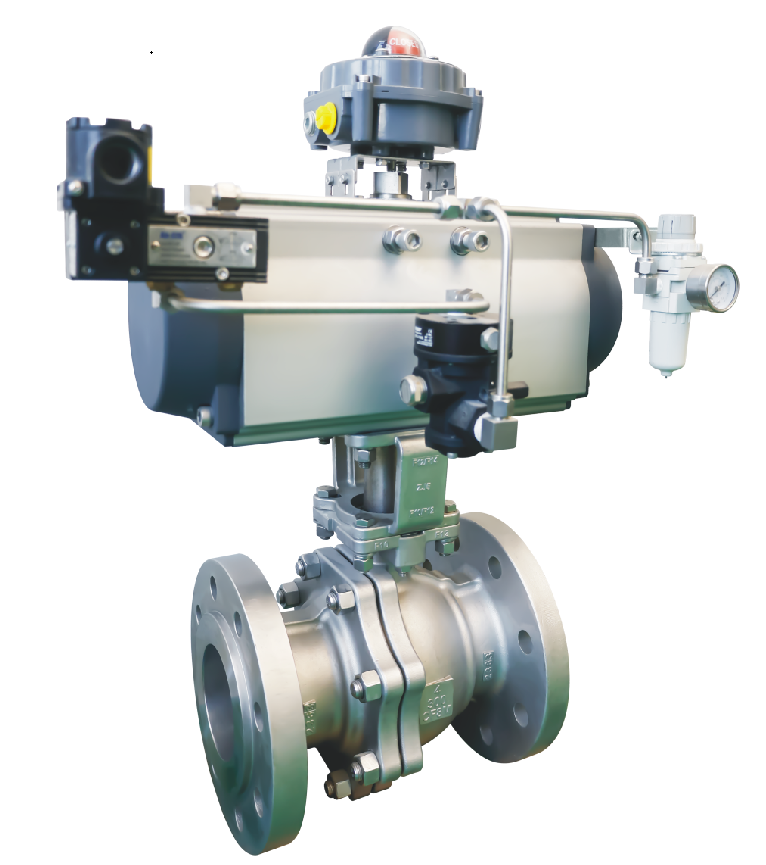

4. The support platform and valve body are of an integrated structure, allowing for connection to automated actuators such as pneumatic and electric actuators.

5. The shell is crafted using silica sol casting technology, resulting in an aesthetically pleasing appearance.
