Core Parameters

• ▶Qi source pressure:43.5~145.5PSI (3～10bar);

• ▶Output torque:dual effects pneumatic 1000～16000Nm;

• ▶Output torque: Single effect is motivated 640～83650Nm;

• ▶The following temperature range is optional:

• ▶Standard:-20°F~200°F(-29℃～93℃)

• ▶Low temperature:-50°F～180 °F(-46℃～82℃)

• ▶High temperature:0°F～350°F(-18℃~177℃)

Technical Features

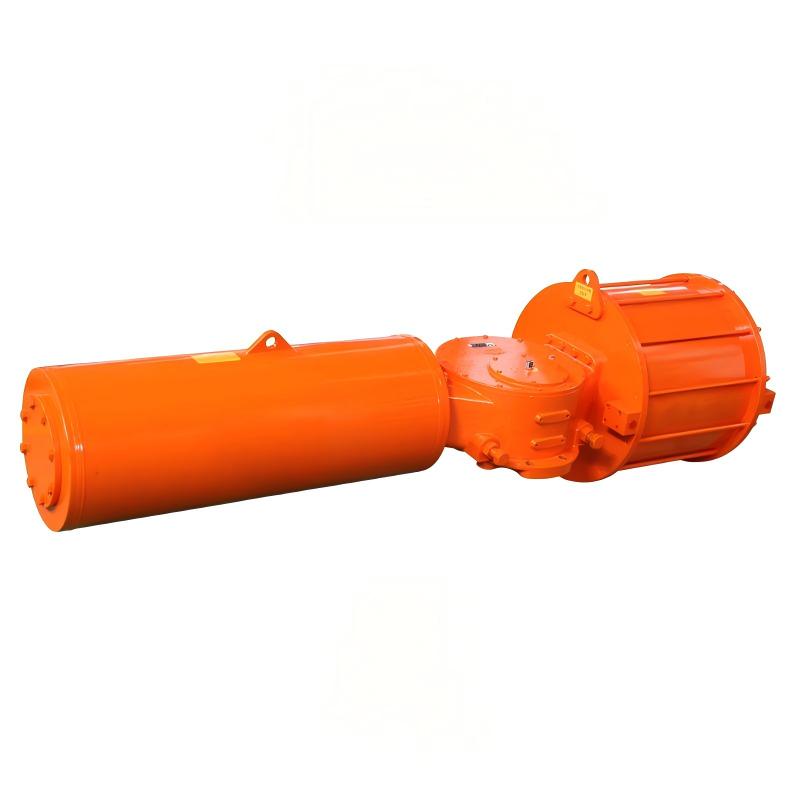

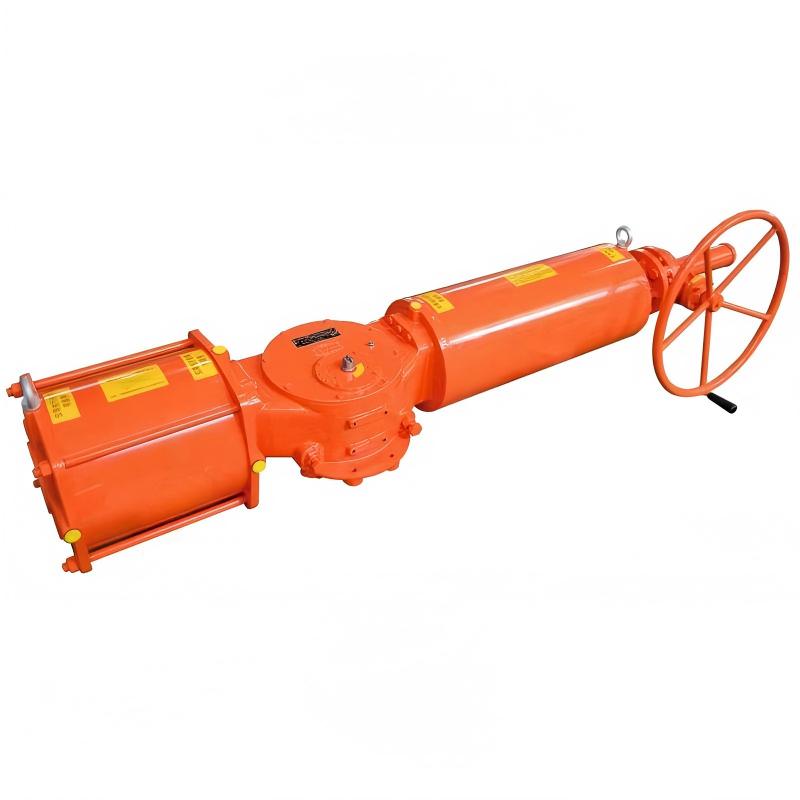

HPY series actuators adopt a highly modular design concept and are divided into cylinder module (hydraulic cylinder module), box module and spring module to simplify field configuration. Users can flexibly choose the mode of action according to the actual use requirements, with strong mutuality and universality. It can easily realize the combination and replacement of single and double acting, manual operation and other modules without the need of special tools. Cylinder or hydraulic cylinder module can be configured on one side or on both sides.
