Core Parameters

• Shell material: aluminum alloy shell, epoxy resin powder coating

• Main transmission: first-stage worm gear

• Motor: Operating mode S2-15min (switching type); S4-25% (adjustable type); Class F insulation (Class H optional)

• Valve position detection: counting gear (basic type): absolute value encoder (integrated and intelligent type)

• Moisture-proof heater: standard configuration (integrated and intelligent)

• Torque range: 50-3500Nm

• Speed range: 18-144rpm

• Anticorrosion coating: epoxy resin powder coating, with a salt spray test duration of over 168 hours

• Silent design: less than 65dB

• Protection level: IP67 (basic model); IP68 (integrated and intelligent model)

Technical Features

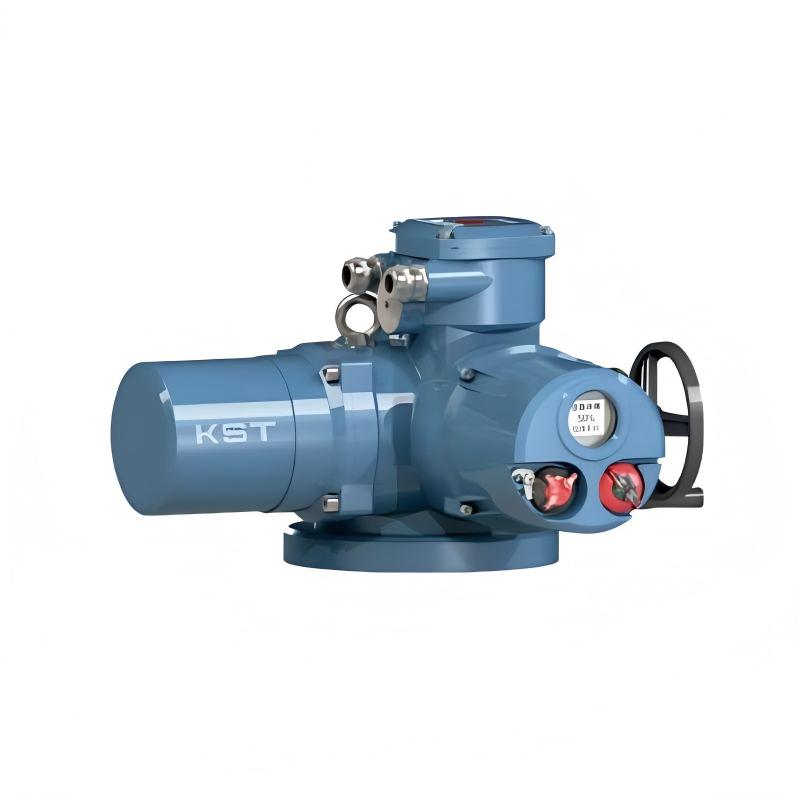

KST multi-turn electric actuator mechanism, suitable for gate valve, globe valve, and other multi-turn rotary valves. Equipped with linear thrust unit, can control the direct stroke type control valve. Equipped with worm gear driving mechanism, can control large-diameter ball valve, butterfly valve and other partial rotary valves; equipped with reducer, base bracket and crank arm, can control the damper and baffle valve.
