Core Parameters

• ▶Execution standard: JB/T 8219-2016 (0rdinary and intelligent Electric actuators for industrial Process Control Systems)

• ▶Function types: Opening signal type R, passive ON/0FF type Bs, regulating type A, non-invasive intelligent type, 2T, 2K;

• ▶Exquisite and durable: 1. The box is made ofintegral aluminum alloy die-casting, with exquisite appearance and compact structure;2. H-class asynchronous motor, with stable performance and strong power;3. High precision alloy gears, multiple heat treatment processes, good wear resistance;4. High strength copper alloy worm gear, with high strength and good wear resistance;5.integrated design of output shaft, eliminating adapter clearance, high precision, and good strength.

• ▶Rich configuration: Can use AC220V, AC 380V Ac power supply,Dc 24v, Dc 220v Dc power supply, special voltage can be customized

• ▶Easy to use: No refueling, no inspection, waterproof and rust proof, can be installed at any angle;

• ▶Protection device: All products in the series are equipped with electronic and mechanical dual limit devices to prevent overtravel!

• ▶Adopting a worm gear structure with self-locking function, it is safe and reliable.

• ▶Control mode: switching signal,4-20mA curent signal, 0-0vDc voltage signal can be selected as the control signal to series of KST smart type electric actuator meet various on-site control requirements;

• ▶Torque range: 50~1000N.m;

• ▶Multiple speeds: Full travel time of9 seconds, 13 seconds, 15 seconds, 30 seconds,50 seconds, 100 seconds (set beforeleaving the factory;

• ▶inteligent CNc: The inteligent control module is highly integrated into the electric device body and can be externally connected to a locatowhen needed. Digital setting, digital tuning, highly accurate, self diagnosis, multifunctional for one machine.

Technical Features

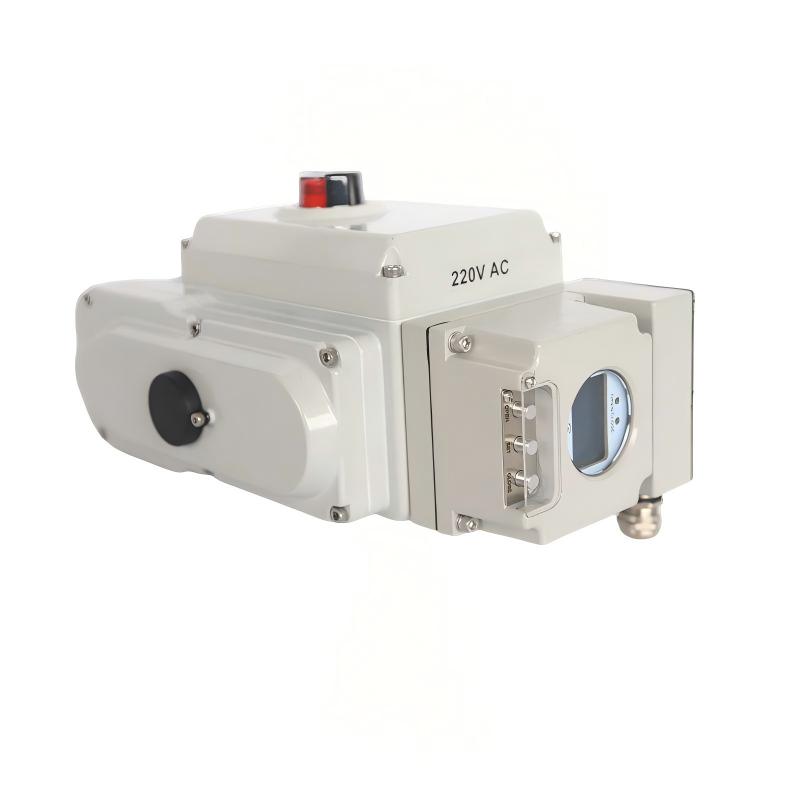

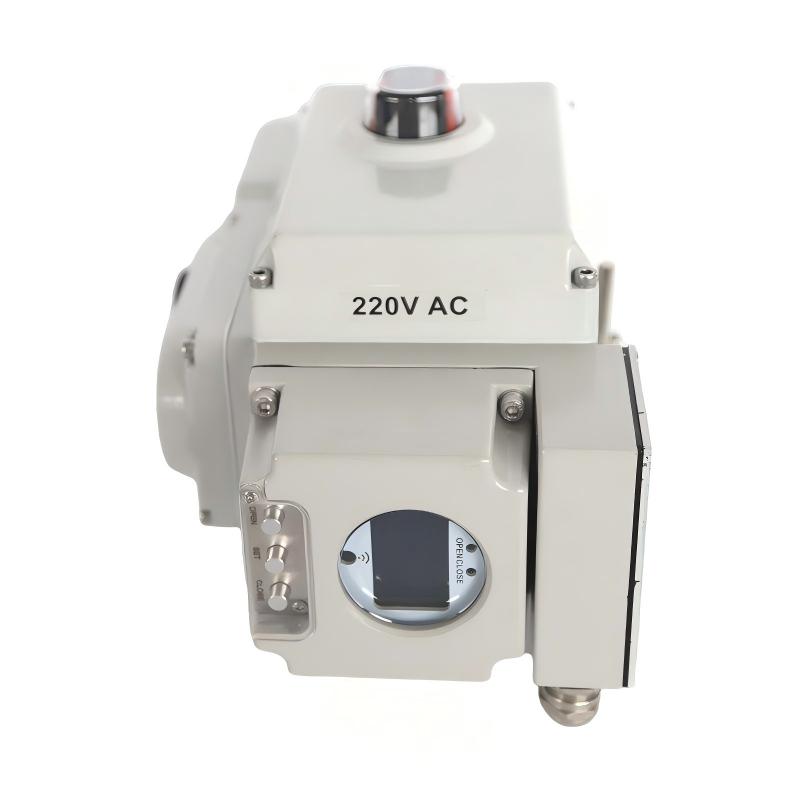

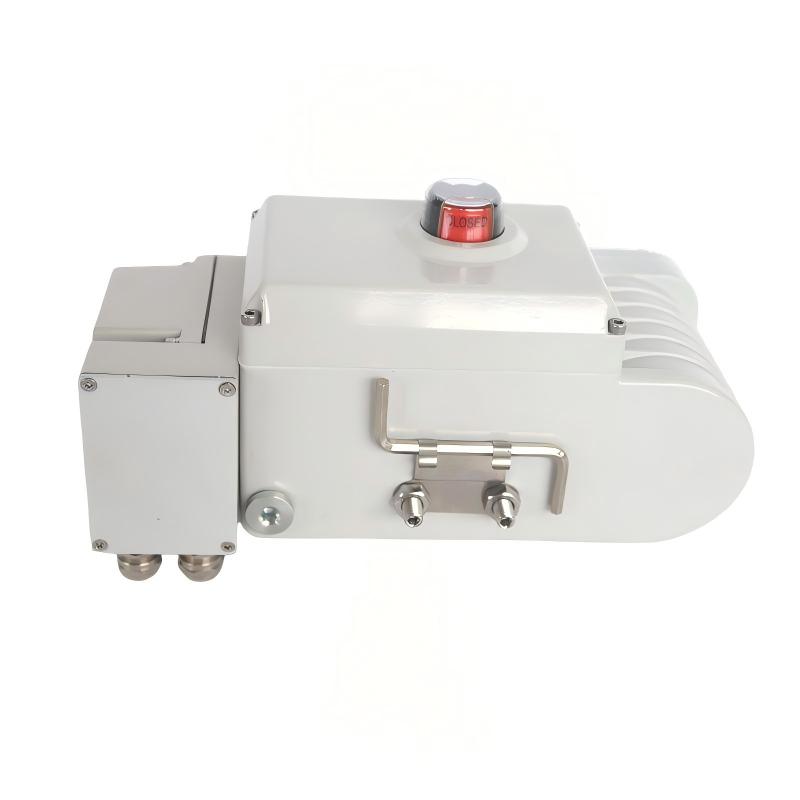

Smart electric actuator, with compact structure, wide output torque range (50-1000Nm),.such as limited installation space, explosion-proof and protection requirements, With excellent weather resistance and shock resistance, There're electrical & mechanical double limits to prevent overtravel: following 1 S0521 installation standard, adapt butterfly valve, ball valve, plug valve, baffle valve and so on.
